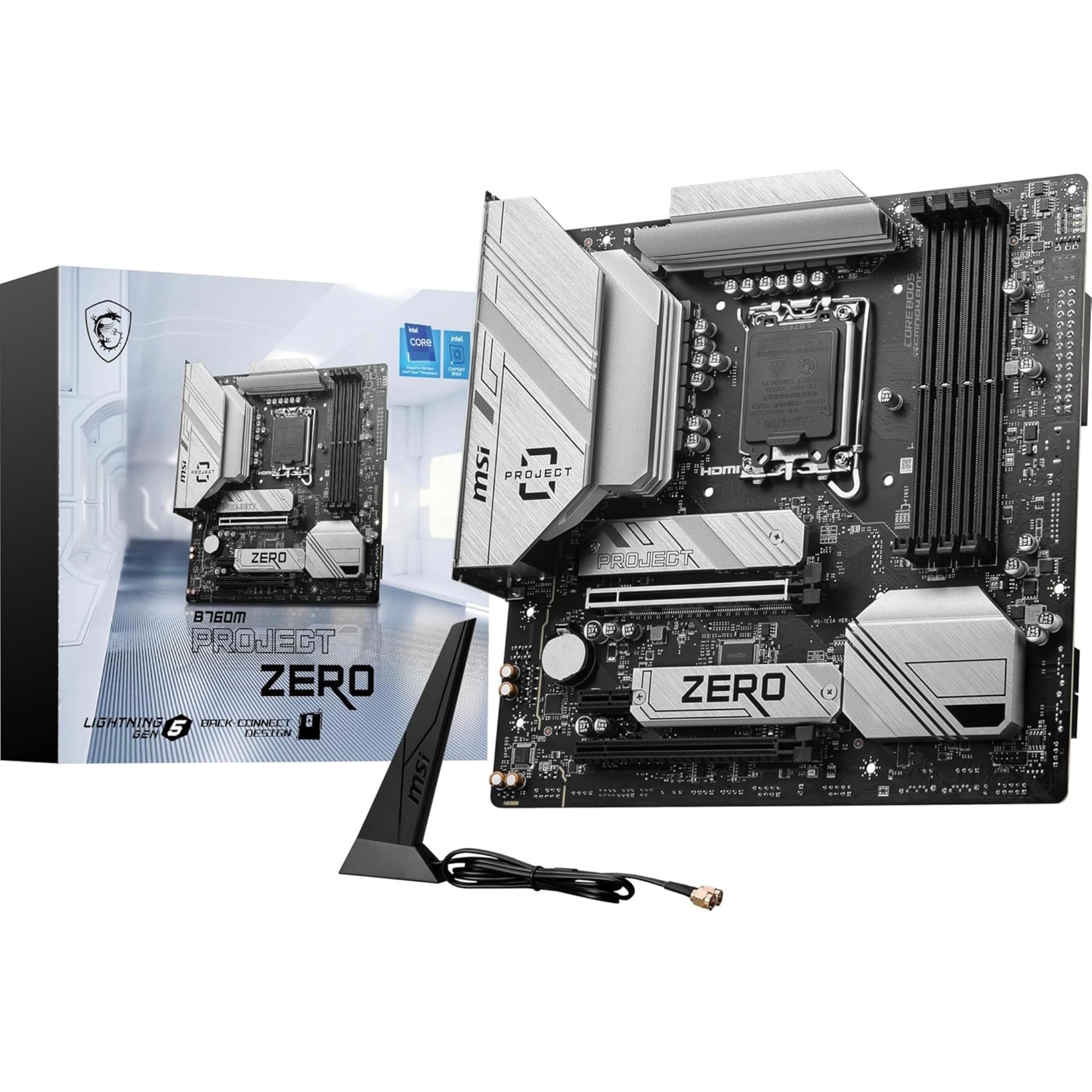

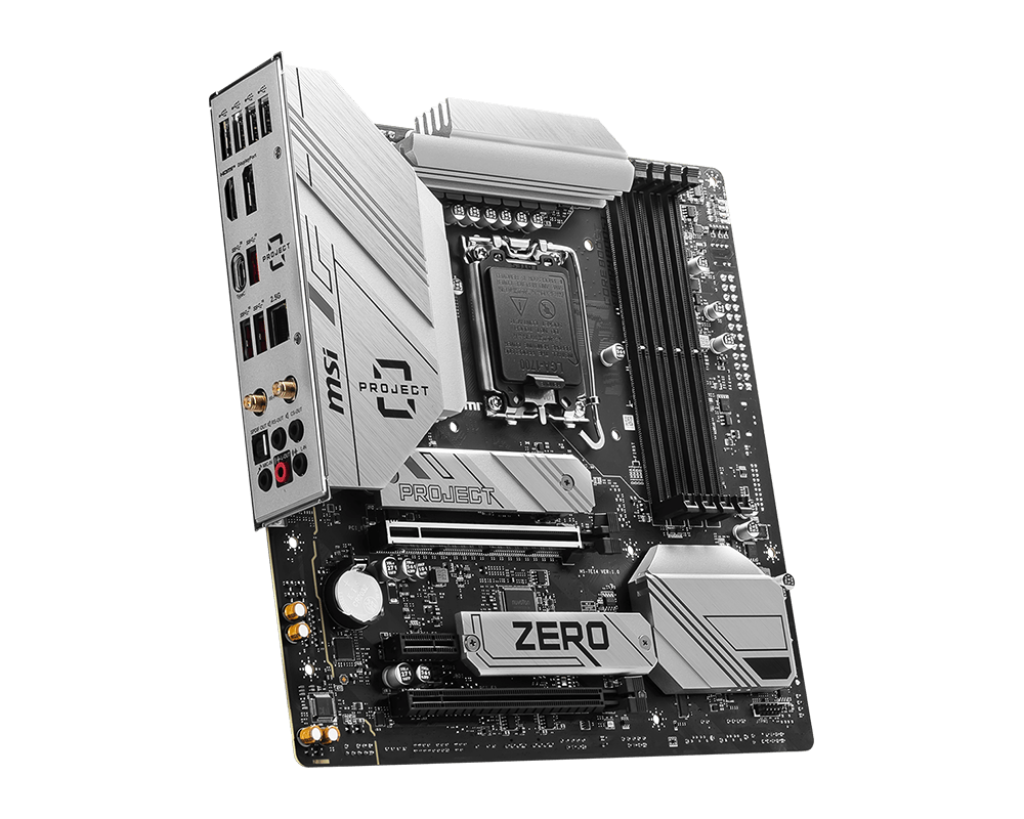

MSI B760M Project Motherboard

Designed for minimalist builds and demanding users, the MSI B760M PROJECT ZERO stands out with its innovative "back-connect" design, with all connectors moved to the rear of the board for a clean and uncluttered case interior.

Key technical specifications:

• Socket: LGA 1700 compatible with 12th, 13th, and 14th generation Intel Core processors, as well as Pentium Gold and Celeron
• Form Factor: Micro-ATX (≈ 244 × 244 mm)
• Chipset: Intel B760

Memory:

• 4 DDR5 Dual-Channel slots, up to 192 GB
• Support for frequencies up to 7800+ MHz (OC) thanks to XMP 3.0

Power and Overclocking:

• 12+1+1 phase "Duet Rail Power" system with "DrMOS" (75 A), dual 8-pin CPU connector, "Core Boost" & "Memory Boost" for stable performance

Graphics and Storage:

• 1× PCIe 5.0 ×16 Steel Armor reinforced
• 1× PCIe 4.0 ×16 (×4 mode) and 1× PCIe 3.0 ×1
• 2× M.2 Gen4 x4 64 Gb/s with M.2 Shield FROZR heatsink to prevent performance degradation due to overheating

Connectivity:

• Fast Network: 2.5 Gbps Ethernet (Realtek) and Wi-Fi 6E with Bluetooth 5.3
• Ultra-fast USB: 1× USB-C 3.2 Gen 2×2 20 Gb/s, 3× USB-A 3.2 Gen 2 (10 Gb/s), multiple 2.0 ports
• Video Outputs: HDMI 2.1 and DisplayPort 1.4 (depending on integrated processor)

Audio:

• Realtek ALC897 chip with 7.1-channel high-definition sound and integrated audio boost

Cooling and PCB durability:

• Extended VRM heatsinks, 7 W/m·K thermal pads, six-layer 2oz thick copper PCB for excellent thermal and electrical stability

Additional features:

• Simplified cabling with back-connect design for a clean interior aesthetic
• 3-year manufacturer's warranty

Why choose the MSI B760M PROJECT ZERO?

• Minimalist look and clean assembly thanks to rear connectors, ideal for Project Zero compatible cases
• Powerful performance via ultra-fast DDR5 support, robust power delivery, and PCIe Gen5
• Complete modern connectivity: ultra-fast USB-C, Wi-Fi 6E, 2.5 Gb LAN
• Efficient cooling and long-term reliability.

The MSI B760M PROJECT ZERO is an excellent choice for gamers, content creators, and professionals looking to build a compact, high-performance, and visually impeccable PC.
